Fitz’s Atlas of Coating Surveys is a pocket-sized ring binder that contains fifteen sections on aspects of coating surveys and has been compiled as a guide to producing uniform and consistent coating evaluations and reports.

Each section has been compiled by coating specialists who understand paint coatings and their importance in corrosion protection.

The Atlas is a 4¾" x 7¼" 300 page ring binder with detailed illustrations.

The Atlas covers various aspects of conducting coating surveys and evaluating coating condition rating from sampling techniques, field tests and laboratory analysis through to specific adhesion and holiday detection.

The Atlas also covers survey techniques used for passive fire protection coatings and marine fouling

Re Scale of Rust

The European Scale of Degree for Anti-Corrosive Paint is illustrated in both colour and the original black & white.

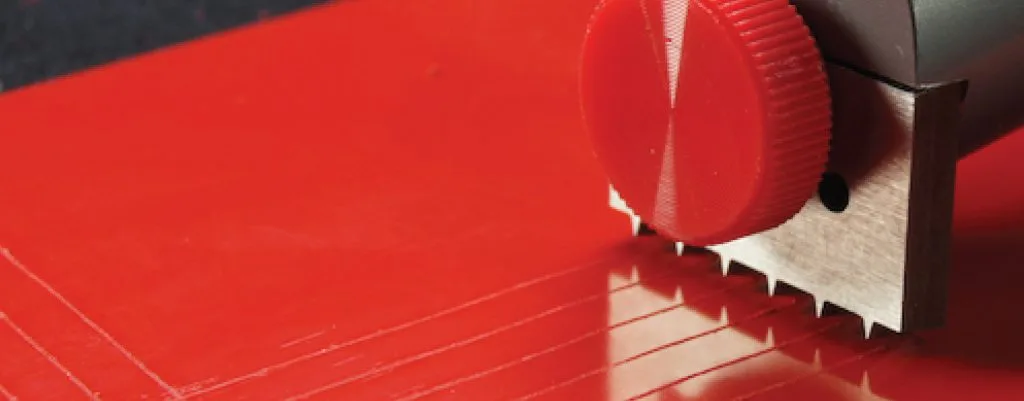

Standards and Test Methods

Thirtyseven Standards and Test Methods from ISO, ASTM, NACE, PSPC and SSPC are detailed within the Atlas relating to paint testing and evaluation, adhesion tests, dry film thickness and holiday detection.

Estimation of Percentages

Estimation of the extent of Rusting of a coated steel surface is demonstrated by using illustrations of variable degrees of rust (0.5, 1.0, 3.0, 5.0. 10 and 15%). Scattered and localised rusting is illustrated.
